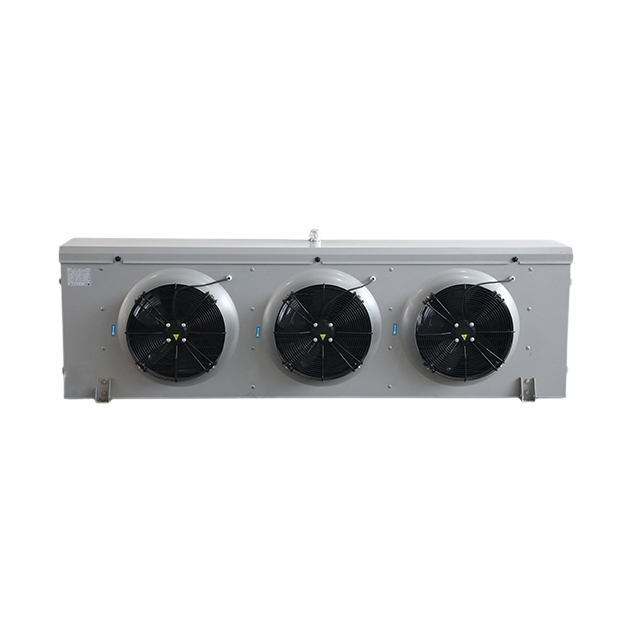

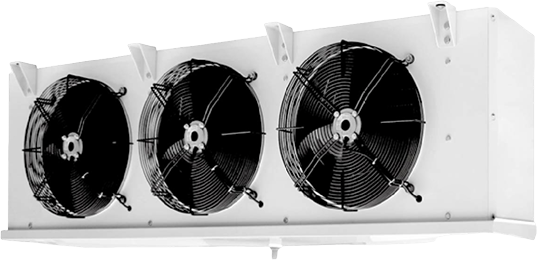

EH Series Commercial High-Efficiency Ceiling-Mounted Air Cooler

Aluminum side sheet: Protects copper tube, reduces weight.
Double drain trays design: Angled edge structure for smooth water drainage; inner water plate directs water to outer water plate drain outlet.

Product Series	EH Series
Machine	Ceiling-Mounted Air Cooler
Color	silver gray RAL9006
Diameter	500
Efficient coil	38.1x33
Corrugated aluminum sheet	4.0mm, 6.0mm, and 9.0mm
Fan Temperature	-30°C to 60°C
Waterproofing	IP65 waterproof junction box and connectors
Pressure testing	23bar
Refrigerant	R404A, R507A, R448A, R449A, R134a, R22
