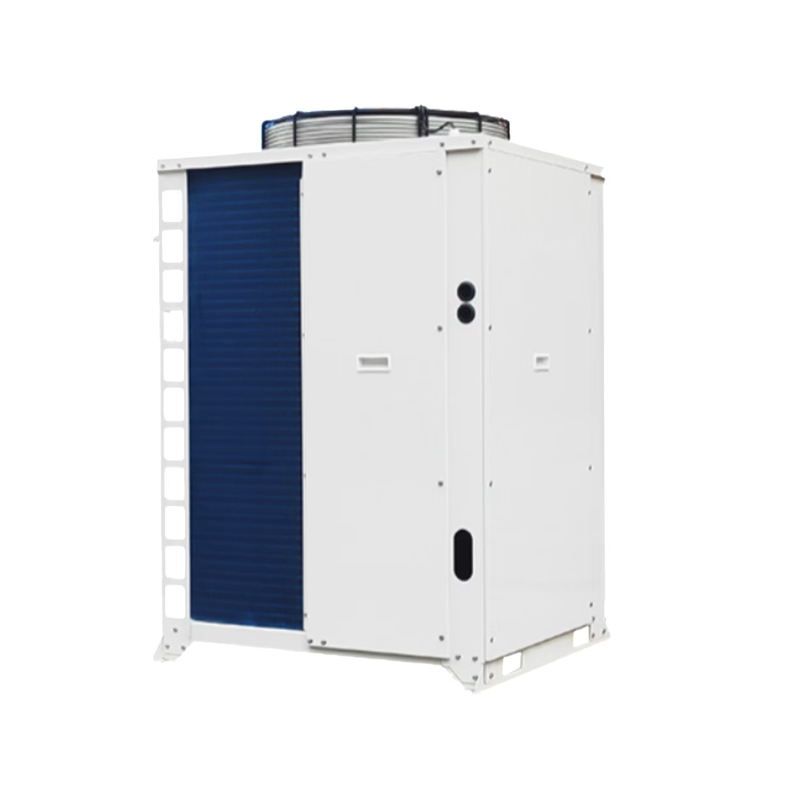

10P Cold Storage Intelligent Unit

Availability:
Inquire

Product Series10P Cold Storage Intelligent Unit
Compressor ModelLJXAC-10
Air Cooler ModelLJXAE-5002-50
Voltage (V)380V
Capacity10P
RefrigerantR22/R40A

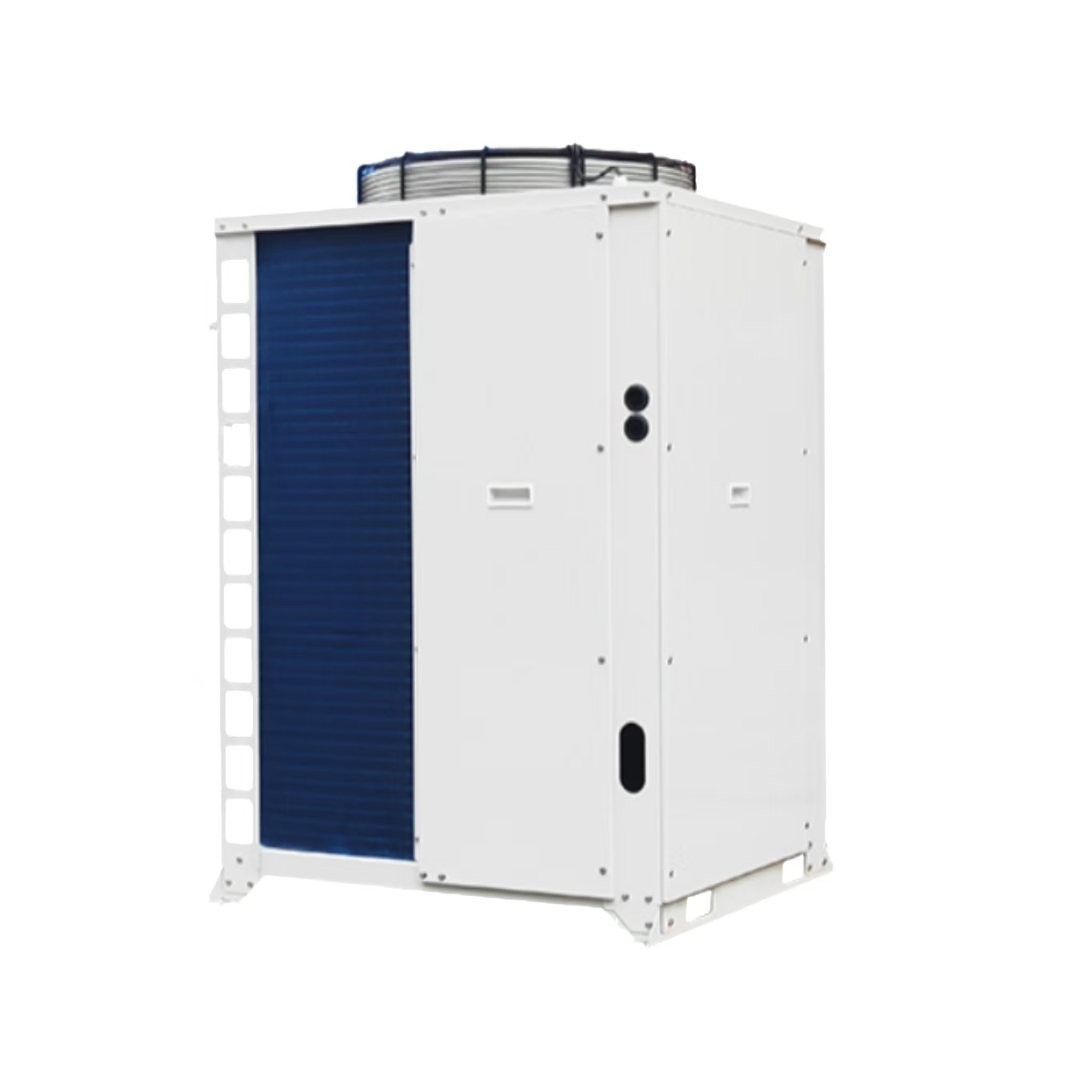

Condenser Unit
Motor Power480 W
Motor Speed900 r/min
Air Volume11000 m³/h
Condensing Fan Voltage220 V~/50 Hz
Noise67 dB(A)
Refrigerant Model

R22/R40A

Pre-charged Refrigerant12 kg
Connection SpecificationsLiquid Tube: 19.05 mm
Suction Pipe: 28 mm
Connection TypeGlobe Valve

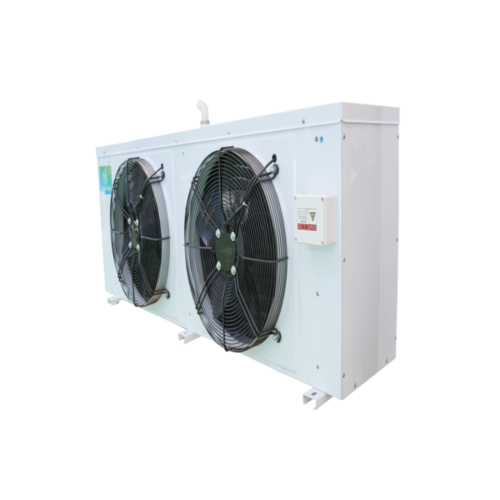

Air Cooler
Motor Power420 W
Motor Speed1350 r/min
Air Volume6500 m³/h
Fan Motor Voltage380 V/3N^/50 Hz
Noise69 dB(A)
Drain PortG1¼


10P Cold Storage Intelligent Unit

10P Cold Storage Intelligent Unit10P Cold Storage Intelligent Unit10P Cold Storage Intelligent Unit10P Cold Storage Intelligent Unit10P Cold Storage Intelligent Unit1709710307118359 (1)1709710307118359

10P Cold Storage Intelligent Unit
