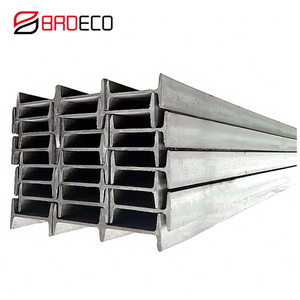

I-Beam (KS D 3502:2016 JIS G 3192:2008)

I-beams come in various sizes, with the depth (height) of the web, width of the flanges, and thickness of the web and flanges varying to meet different structural needs. It often used in residential building projects, smaller-scale commercial buildings, and structures requiring long spans but less load.

Availability:



Inquire

Country Standard	Japan
Specifications	KS D 3502:2016 JIS G 3192:2008
Length(mm)	6000 - 12000 Length can be customized as request
Manufacturing Process	Hot Rolled
Shape	I channel
Application	Residential Buildings, Infrastructure Projects, Industrial Structures, Building Construction

I-Beam Steel I- Beam I Shaped Beam

Related Products

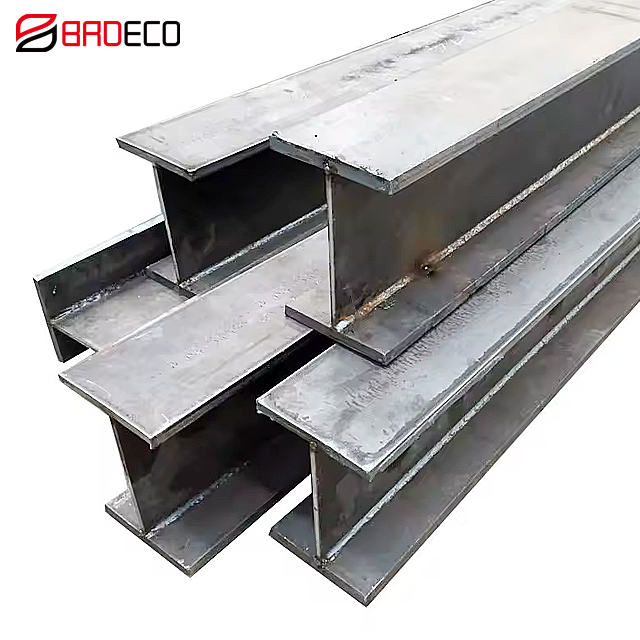

I-Beam (EN10034:1997 EN10163-3:2004)

Division (depth x width)	Unit Weight (kg/m)	Standard Sectional Dimension (mm)						Sectional Area (cm²)
	Unit Weight (kg/m)	Standard Sectional Dimension (mm)						Sectional Area (cm²)
	M	H	B	t w	t 2	r 1	r 2	A
100*75	12.9	100	75	5	8	7	3.5	16.43
125*75	16.1	125	75	5.5	9.5	9	4.5	20.45
150*75	17.1	150	75	5.5	9.5	9	4.5	21.83
150*125	36.2	150	125	8.5	14	13	6.5	46.15
180*100	23.6	180	100	6	10	10	5	33.06
200*100	26	200	100	7	10	10	5	33.06
200*150	50.4	200	150	9	16	15	7.5	64.16
250*125	38.3	250	125	7.5	12.5	12	6	48.79
250*125	55.5	250	125	10	19	21	6	70.73
300*150	48.3	300	150	8	13	12	6	61.58
300*150	65.5	300	150	10	18.5	19	9.5	83.47
300*150	76.8	300	150	11.5	22	23	11.5	97.88
300*150	58.5	300	150	9	15	13	6.5	74.58
350*150	87.2	350	150	12	24	25	12.5	111.1
400*150	72	400	150	10	18	17	8.5	91.73
400*150	95.8	400	150	12.5	25	27	13.5	122.1
450*175	91.7	450	175	11	20	19	9.5	116.8
450*175	115	450	175	13	26	27	13.5	146.1
600*190	133	600	190	13	25	25	12.5	169.4
600*190	176	600	190	16	35	38	19	224.5

Division (depth x width)	Unit Weight (kg/m)	Standard Sectional Dimension (mm)						Sectional Area (cm²)
	Unit Weight (kg/m)	Standard Sectional Dimension (mm)						Sectional Area (cm²)
	M	H	B	t w	t 2	r 1	r 2	A
100*75	12.9	100	75	5	8	7	3.5	16.43
125*75	16.1	125	75	5.5	9.5	9	4.5	20.45
150*75	17.1	150	75	5.5	9.5	9	4.5	21.83
150*125	36.2	150	125	8.5	14	13	6.5	46.15
180*100	23.6	180	100	6	10	10	5	33.06
200*100	26	200	100	7	10	10	5	33.06
200*150	50.4	200	150	9	16	15	7.5	64.16
250*125	38.3	250	125	7.5	12.5	12	6	48.79
250*125	55.5	250	125	10	19	21	6	70.73
300*150	48.3	300	150	8	13	12	6	61.58
300*150	65.5	300	150	10	18.5	19	9.5	83.47
300*150	76.8	300	150	11.5	22	23	11.5	97.88
300*150	58.5	300	150	9	15	13	6.5	74.58
350*150	87.2	350	150	12	24	25	12.5	111.1
400*150	72	400	150	10	18	17	8.5	91.73
400*150	95.8	400	150	12.5	25	27	13.5	122.1
450*175	91.7	450	175	11	20	19	9.5	116.8
450*175	115	450	175	13	26	27	13.5	146.1
600*190	133	600	190	13	25	25	12.5	169.4
600*190	176	600	190	16	35	38	19	224.5
