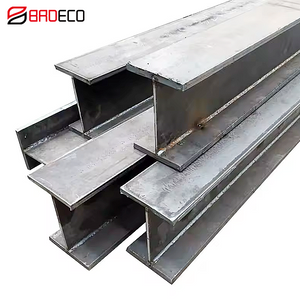

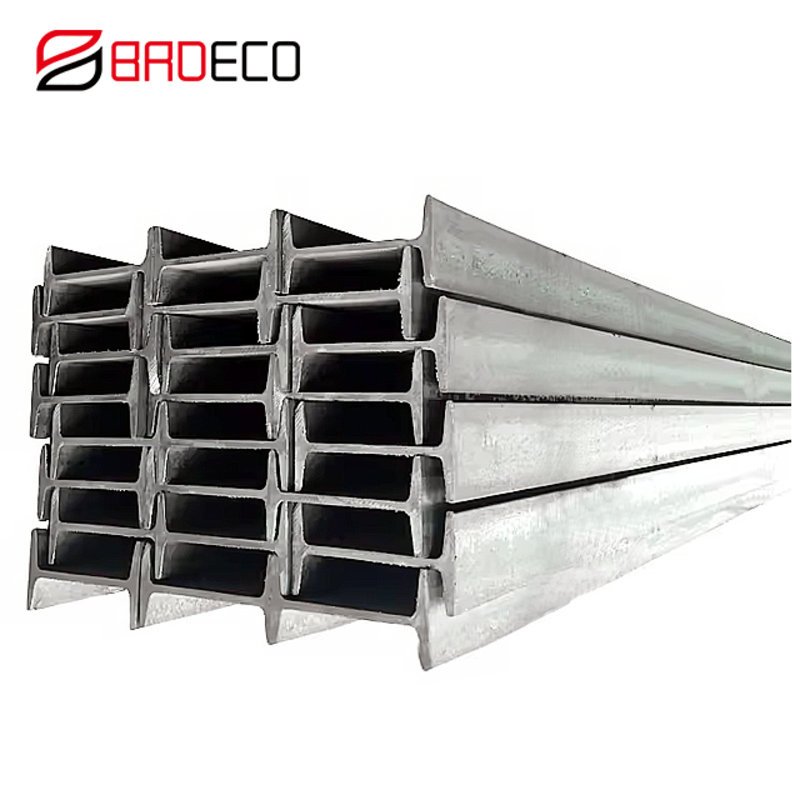

I-Beam (EN10034:1997 EN10163-3:2004)

I-beams come in various sizes, with the depth (height) of the web, width of the flanges, and thickness of the web and flanges varying to meet different structural needs. It often used in residential building projects, smaller-scale commercial buildings, and structures requiring long spans but less load. There are 2 standards available: IPE and IPN.

Availability:



Inquire

Product Description
Product Dimension Table (IPE）
Product Dimension Table (IPN)

Country Standard	Europe
Specifications	EN10034:1997 EN10163-3：2004
Length(mm)	6000 - 12000 Length can be customized as request
Manufacturing Process	Hot Rolled
Shape	I channel
Application	Residential Buildings, Infrastructure Projects, Industrial Structures, Building Construction

I-Beam Steel I- Beam I Shaped Beam

Related Products

I-Beam (KS D 3502:2016 JIS G 3192:2008)

Division (depth x width)		Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
		Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
		W	H	B	t ₁	t ₂	r	A
IPE80	A	5	78	46	3.3	4.2	5	6.38
IPE80	-	6	80	46	3.8	5.2	5	7.64
IPE100	A	6.9	98	55	3.6	4.7	7	8.8
IPE100	-	8.1	100	55	4.1	5.7	7	10.3
IPE120	A	8.66	117.6	64	3.8	5.1	7	11.03
IPE120	-	10.4	120	64	4.4	6.3	7	13.21
IPE140	A	10.5	137.4	73	3.8	5.6	7	13.39
IPE140	-	12.9	140	73	4.7	6.9	7	16.43
IPE160	A	12.7	157	82	4	5.9	9	16.18
IPE160	-	15.8	160	82	5	7.4	9	20.09
IPE180	A	15.4	177	91	4.3	6.5	9	19.58
	-	18.8	180	91	5.3	8	9	23.95
	O	21.3	182	92	6	9	9	27.1
IPE200	A	18.4	197	100	4.5	7	12	23.47
	-	22.4	200	100	5.6	8.5	12	28.48
	O	25.1	202	102	6.2	9.5	12	31.96
IPE220	A	22.2	217	110	5	7.7	12	28.26
	-	26.2	220	110	5.9	9.2	12	33.37
	O	29.4	222	112	6.6	10.2	12	37.39
IPE240	A	26.2	237	120	5.2	8.3	15	33.31
	-	30.7	240	120	6.2	9.8	15	39.12
	O	34.3	242	122	7	10.8	15	43.71
IPE270	A	30.7	267	135	5.5	8.7	15	39.15
	-	36.1	270	135	6.6	10.2	15	45.95
	O	42.3	274	136	7.5	12.2	15	53.84

Division (depth x width)		Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
		Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
		W	H	B	t ₁	t ₂	r	A
IPE300	A	36.5	297	150	6.1	9.2	15	46.53
	-	42.2	300	150	7.1	10.7	15	53.81
	O	49.3	304	152	8	12.7	15	62.83
IPE330	A	43	327	160	6.5	10	18	54.74
	-	49.2	330	160	7.5	11.5	18	62.61
	O	57	334	162	8.5	13.5	18	72.62
IPE360	A	50.2	357.6	170	6.6	11.5	18	63.96
IPE360	-	57.1	360	170	8	12.7	18	72.73
IPE400	A	57.4	397	180	7	12	21	73.1
	-	66.3	400	180	8.6	13.5	21	84.46
	O	75.7	404	182	9.7	15.5	21	96.39
IPE450	A	67.2	447	190	7.6	13.1	21	85.55
	-	77.6	450	190	9.4	14.6	21	98.82
	O	92.4	456	192	11	17.6	21	117.7
IPE500	A	79.4	497	200	8.4	14.5	21	101.1
	-	90.7	500	200	10.2	16	21	115.5
	O	107	506	202	12	19	21	136.7
IPE550	A	92.1	547	210	9	15.7	24	117.3
	-	106	550	210	11.1	17.2	24	134.4
	O	123	556	212	12.7	20.2	24	156.1
IPE600	A	108	597	220	9.8	17.5	24	137
	-	122	600	220	12	19	24	156
	O	154	610	224	15	24	24	196.8

Division (depth x width)		Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
		Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
		W	H	B	t ₁	t ₂	r	A
IPE80	A	5	78	46	3.3	4.2	5	6.38
IPE80	-	6	80	46	3.8	5.2	5	7.64
IPE100	A	6.9	98	55	3.6	4.7	7	8.8
IPE100	-	8.1	100	55	4.1	5.7	7	10.3
IPE120	A	8.66	117.6	64	3.8	5.1	7	11.03
IPE120	-	10.4	120	64	4.4	6.3	7	13.21
IPE140	A	10.5	137.4	73	3.8	5.6	7	13.39
IPE140	-	12.9	140	73	4.7	6.9	7	16.43
IPE160	A	12.7	157	82	4	5.9	9	16.18
IPE160	-	15.8	160	82	5	7.4	9	20.09
IPE180	A	15.4	177	91	4.3	6.5	9	19.58
	-	18.8	180	91	5.3	8	9	23.95
	O	21.3	182	92	6	9	9	27.1
IPE200	A	18.4	197	100	4.5	7	12	23.47
	-	22.4	200	100	5.6	8.5	12	28.48
	O	25.1	202	102	6.2	9.5	12	31.96
IPE220	A	22.2	217	110	5	7.7	12	28.26
	-	26.2	220	110	5.9	9.2	12	33.37
	O	29.4	222	112	6.6	10.2	12	37.39
IPE240	A	26.2	237	120	5.2	8.3	15	33.31
	-	30.7	240	120	6.2	9.8	15	39.12
	O	34.3	242	122	7	10.8	15	43.71
IPE270	A	30.7	267	135	5.5	8.7	15	39.15
	-	36.1	270	135	6.6	10.2	15	45.95
	O	42.3	274	136	7.5	12.2	15	53.84

Division (depth x width)		Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
		Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
		W	H	B	t ₁	t ₂	r	A
IPE300	A	36.5	297	150	6.1	9.2	15	46.53
	-	42.2	300	150	7.1	10.7	15	53.81
	O	49.3	304	152	8	12.7	15	62.83
IPE330	A	43	327	160	6.5	10	18	54.74
	-	49.2	330	160	7.5	11.5	18	62.61
	O	57	334	162	8.5	13.5	18	72.62
IPE360	A	50.2	357.6	170	6.6	11.5	18	63.96
IPE360	-	57.1	360	170	8	12.7	18	72.73
IPE400	A	57.4	397	180	7	12	21	73.1
	-	66.3	400	180	8.6	13.5	21	84.46
	O	75.7	404	182	9.7	15.5	21	96.39
IPE450	A	67.2	447	190	7.6	13.1	21	85.55
	-	77.6	450	190	9.4	14.6	21	98.82
	O	92.4	456	192	11	17.6	21	117.7
IPE500	A	79.4	497	200	8.4	14.5	21	101.1
	-	90.7	500	200	10.2	16	21	115.5
	O	107	506	202	12	19	21	136.7
IPE550	A	92.1	547	210	9	15.7	24	117.3
	-	106	550	210	11.1	17.2	24	134.4
	O	123	556	212	12.7	20.2	24	156.1
IPE600	A	108	597	220	9.8	17.5	24	137
	-	122	600	220	12	19	24	156
	O	154	610	224	15	24	24	196.8

Division (depth x width)	Unit Weight (kg/m)	Standard Sectional Dimension (mm)						Sectional Area (cm²)
	Unit Weight (kg/m)	Standard Sectional Dimension (mm)						Sectional Area (cm²)
	G	H	B	t _w	t ₂	r ₁	r ₂	A
IPN 80*	5.94	80	42	3.9	5.9	3.9	2.3	7.57
IPN 100*	8.34	100	50	4.5	6.8	4.5	2.7	10.6
IPN 120*	11.1	120	58	5.1	7.7	5.1	3.1	14.2
IPN 140*	14.3	140	66	5.7	8.6	5.7	3.4	18.2
IPN 160*	17.9	160	74	6.3	9.5	6.3	3.8	22.8
IPN 180*	21.9	180	82	6.9	10.4	6.9	4.1	27.9
IPN 200*	26.2	200	90	7.5	11.3	7.5	4.5	33.4
IPN 220*	31.1	220	98	8.1	12.2	8.1	4.9	39.5
IPN 240*	36.2	240	106	8.7	13.1	8.7	5.2	46.1
IPN 260*	41.9	260	113	9.4	14.1	9.4	5.6	53.3
IPN 280*	47.9	280	119	10.1	15.2	10.1	6.1	61
IPN 300*	54.2	300	125	10.8	16.2	10.8	6.5	69
IPN 320*	61	320	131	11.5	17.3	11.5	6.9	77.7
IPN 340*	68	340	137	12.2	18.3	12.2	7.3	86.7
IPN 360*	76.1	360	143	13	19.5	13	7.8	97
IPN 380*	84	380	149	13.7	20.5	13.7	8.2	107
IPN 400*	92.4	400	155	14.4	21.6	14.4	8.6	118
IPN 450*	115	450	170	16.2	24.3	16.2	9.7	147
IPN 500*	141	500	185	18	27	18	10.8	179
IPN 550*	166	550	200	19	30	19	11.9	212
IPN 600*	199	600	215	21.6	32.4	21.6	13	254
