U- Channel (EN10206-1:2000 EN10279:2000 EN10163-3:2004)

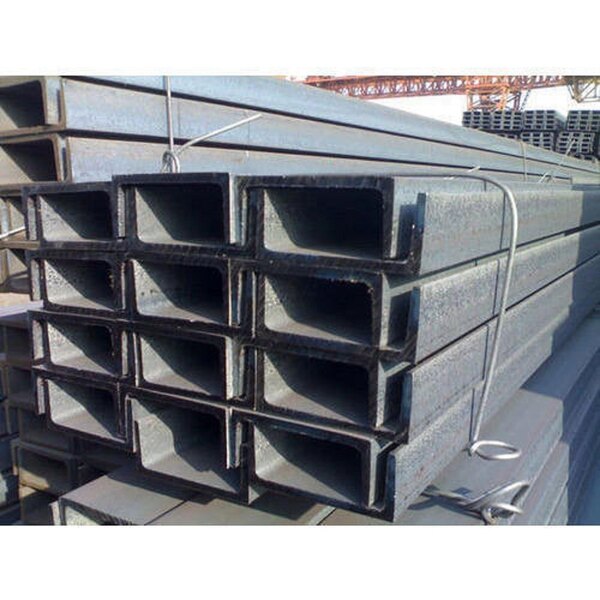

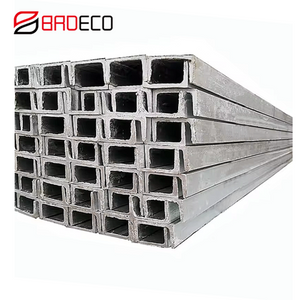

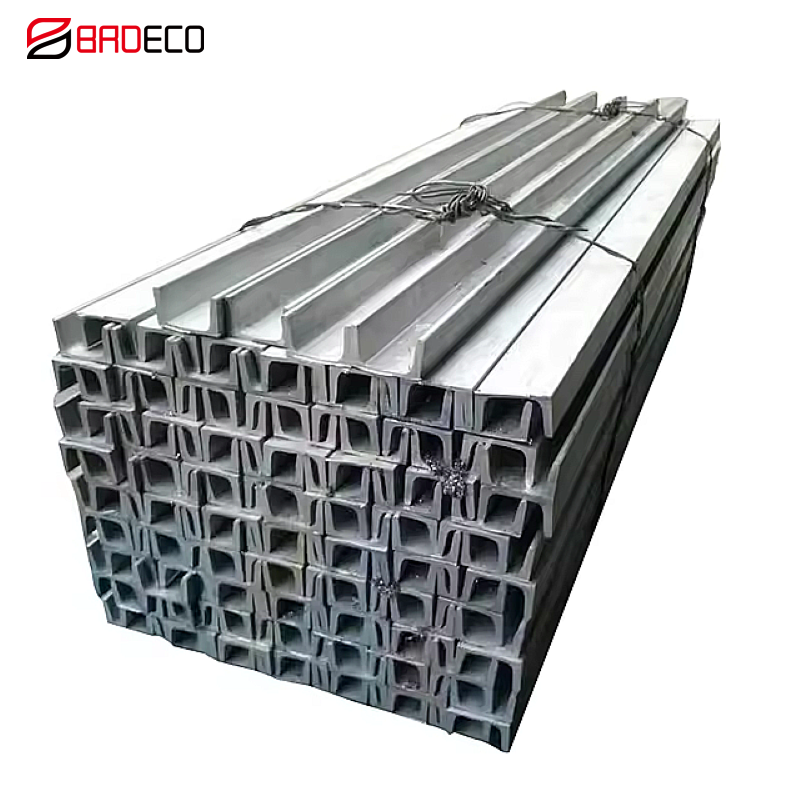

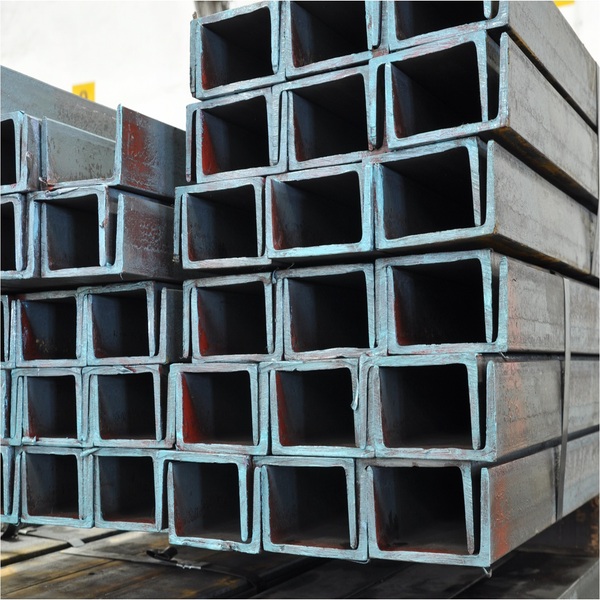

U-channel, also known as a U-beam, is a type of structural steel beam with a U-shaped cross-section. It consists of two parallel flanges connected by a single web. U-beams are commonly used in construction and manufacturing for their versatility and ease of use. There are 2 standard available: UPN and UPE.

Availability:



Inquire

Product Description
Product Dimension Table (UPN)
Product Dimension Table (UPE)

Name	U- Channel U- Shaped U- Beam U- Bar
Specifications	EN10206-1:2000 EN10279:2000 EN10163-3:2004
Length(mm)	6000 - 12000 Length can be customized as request
Manufacturing Process	Hot Rolled
Shape	U -shaped with two flanges and a web
Application	Residential Buildings, Infrastructure Projects, Industrial Structures, Building Construction

U-Beam Steel U-Beam U Shaped Beam U-channel

Related Products

U- Channel (KS D 3502:2016 JIS G 3192:2008)

U- Channel (EN10279:2000 EN10163-3:2004)

Division (depth x width)	Unit Weight (kg/m)	Standard Sectional Dimension (mm)
	Unit Weight (kg/m)	Standard Sectional Dimension (mm)
	G	H	B	tW	tf	r
UPN 50	5,59	50	38	5,0	7,0	7,0
UPN 65	7,09	65	42	5,5	7,5	7,5
UPN 80	8,64	80	45	6,0	8,0	8,0
UPN 100	10,6	100	50	6,0	8,5	8,5
UPN 120	13,4	120	55	7,0	9,0	9,0
UPN 140	16,0	140	60	7,0	10,0	10,0
UPN 160	18,8	160	65	7,5	10,5	10,5
UPN 180	22,0	180	70	8,0	11,0	11,0
UPN 200	25,3	200	75	8,5	11,5	11,5
UPN 220	29,4	220	80	9,0	12,5	12,5
UPN 240	33,2	240	85	9,5	13,0	13,0
UPN 260	37,9	260	90	10,0	14,0	14,0
UPN 280	41,8	280	95	10,0	15,0	15,0
UPN 300	46,2	300	100	10,0	16,0	16,0
UPN 320	59,5	320	100	14,0	17,5	17,5
UPN 350	60,6	350	100	14,0	16,0	16,0
UPN 380	63,1	380	102	13,5	16,0	16,0
UPN 400	71,8	400	110	14,0	18,0	18,0

Division (depth x width)	Unit Weight (kg/m)	Standard Sectional Dimension (mm)
	Unit Weight (kg/m)	Standard Sectional Dimension (mm)
	G	H	B	tW	tf	r
UPN 50	5,59	50	38	5,0	7,0	7,0
UPN 65	7,09	65	42	5,5	7,5	7,5
UPN 80	8,64	80	45	6,0	8,0	8,0
UPN 100	10,6	100	50	6,0	8,5	8,5
UPN 120	13,4	120	55	7,0	9,0	9,0
UPN 140	16,0	140	60	7,0	10,0	10,0
UPN 160	18,8	160	65	7,5	10,5	10,5
UPN 180	22,0	180	70	8,0	11,0	11,0
UPN 200	25,3	200	75	8,5	11,5	11,5
UPN 220	29,4	220	80	9,0	12,5	12,5
UPN 240	33,2	240	85	9,5	13,0	13,0
UPN 260	37,9	260	90	10,0	14,0	14,0
UPN 280	41,8	280	95	10,0	15,0	15,0
UPN 300	46,2	300	100	10,0	16,0	16,0
UPN 320	59,5	320	100	14,0	17,5	17,5
UPN 350	60,6	350	100	14,0	16,0	16,0
UPN 380	63,1	380	102	13,5	16,0	16,0
UPN 400	71,8	400	110	14,0	18,0	18,0

Division (depth x width)	Unit Weight (kg/m)	Standard Sectional Dimension (mm)
	Unit Weight (kg/m)	Standard Sectional Dimension (mm)
	G	H	B	tW	tf	r
UPE 80*	7,90	80	50	4,0	7,0	10
UPE 100*	9,82	100	55	4,5	7,5	10
UPE 120*	12,1	120	60	5,0	8,0	12
UPE 140*	14,5	140	65	5,0	9,0	12
UPE 160*	17,0	160	70	5,5	9,5	12
UPE 180*	19,7	180	75	5,5	10,5	12
UPE 200*	22,8	200	80	6,0	11,0	13
UPE 220*	26,6	220	85	6,5	12,0	13
UPE 240*	30,2	240	90	7,0	12,5	15
UPE 270*	35,2	270	95	7,5	13,5	15
UPE 300*	44,4	300	100	9,5	15,0	15
UPE 330*	53,2	330	105	11,0	16,0	18
UPE 360*	61,2	360	110	12,0	17,0	18
UPE 400*	72,2	400	115	13,5	18,0	18

Division (depth x width)	Unit Weight (kg/m)	Standard Sectional Dimension (mm)
	Unit Weight (kg/m)	Standard Sectional Dimension (mm)
	G	H	B	tW	tf	r
UPE 80*	7,90	80	50	4,0	7,0	10
UPE 100*	9,82	100	55	4,5	7,5	10
UPE 120*	12,1	120	60	5,0	8,0	12
UPE 140*	14,5	140	65	5,0	9,0	12
UPE 160*	17,0	160	70	5,5	9,5	12
UPE 180*	19,7	180	75	5,5	10,5	12
UPE 200*	22,8	200	80	6,0	11,0	13
UPE 220*	26,6	220	85	6,5	12,0	13
UPE 240*	30,2	240	90	7,0	12,5	15
UPE 270*	35,2	270	95	7,5	13,5	15
UPE 300*	44,4	300	100	9,5	15,0	15
UPE 330*	53,2	330	105	11,0	16,0	18
UPE 360*	61,2	360	110	12,0	17,0	18
UPE 400*	72,2	400	115	13,5	18,0	18
