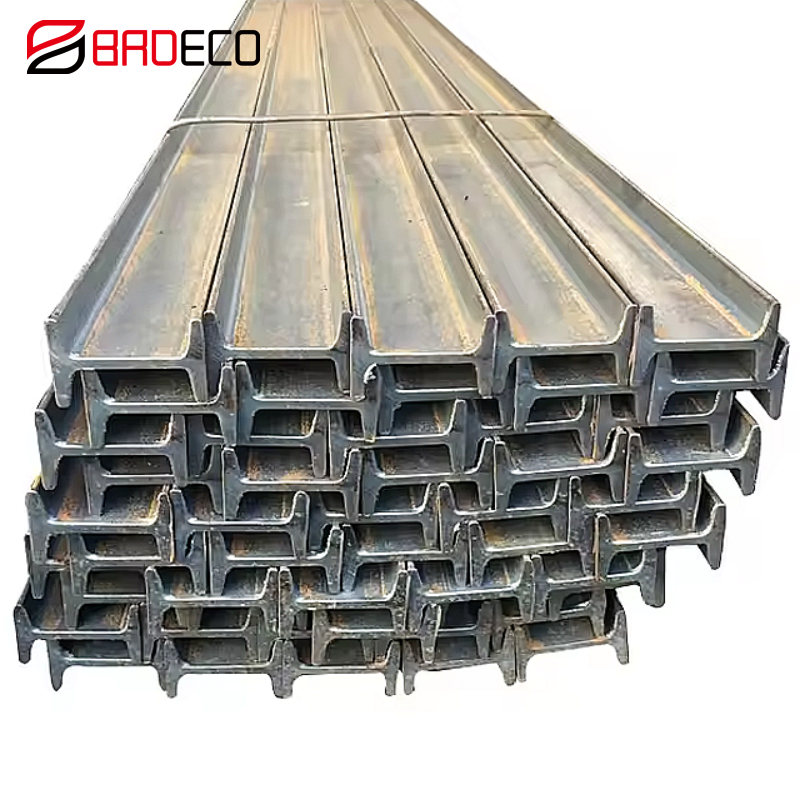

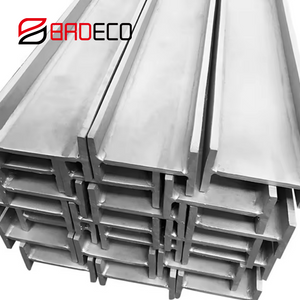

H- Beam (JIS G3192:1994 JIS G3136:2008)

The H- beam features two extended side flanges and a vertical flange, shaped like the letter "H". Its web depth and width allow it to withstand greater loads, making it a superior choice for longer-distance floor and roof load support.

Availability:



Inquire

Product Description
Product Dimension Table

Specifications	JIS G3192:1994 JIS G3136:2008
Length(mm)	6000 - 12000 Length can be customized as request
Manufacturing Process	Hot Rolled
Shape	H channel
Application	Residential Buildings, Infrastructure Projects, Industrial Structures, Building Construction

H- Beam Steel H- Beam H Shaped Beam

Related Products

H- Beam (BS 4:2005 EN10034:1997 EN10163-3：2004)

H- Beam (BS4:2005 EN10034:1997 EN10163-3:2004)

Division (depth x width)	Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
	Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
	W	H	B	t 1	t 2	r	A
100 x 100	16.9	100	100	6	8	8	21.59
125 x 125	23.6	125	125	6.5	9	8	30
150 x 75	14	150	75	5	7	8	17.85
150 x 100	20.7	148	100	6	9	8	26.35
150 x 150	31.1	150	150	7	10	8	39.65
200 x 100	17.8	198	99	4.5	7	8	22.69
200 x 100	20.9	200	100	5.5	8	8	26.67
200 x 150	29.9	194	150	6	9	8	38.11
200 x 200	49.9	200	200	8	12	13	63.53
250 x 125	25.1	248	124	5	8	8	31.99
250 x 125	29	250	125	6	9	8	36.97
250 x 175	43.6	244	175	7	11	13	55.49
250 x 250	71.8	250	250	9	14	13	91.43
300 x 150	32	298	149	5.5	8	13	40.8
300 x 150	36.7	300	150	6.5	9	13	46.78
300 x 200	55.8	294	200	8	12	13	71.05
300 x 300	93	300	300	10	15	13	118.5
350 x 175	41.2	346	174	6	9	13	52.45
350 x 175	49.4	350	175	7	11	13	62.91
350 x 250	78.1	340	250	9	14	13	99.53
350 x 350	135	350	350	12	19	13	171.9
400 x 200	56.1	396	199	7	11	13	71.41
400 x 200	65.4	400	200	8	13	13	83.37
400 x 300	105	390	300	10	16	13	133.3
400 x 400	172	400	400	13	21	22	218.7
	232	414	405	18	28	22	295.4
	283	428	407	20	35	22	360.7
	415	458	417	30	50	22	528.6
	605	498	432	45	70	22	770.1
450 x 200	65.1	446	199	8	12	13	82.97
450 x 200	74.9	450	200	9	14	13	95.43

Division (depth x width)	Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
	Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
	W	H	B	t 1	t 2	r	A
100 x 100	16.9	100	100	6	8	8	21.59
125 x 125	23.6	125	125	6.5	9	8	30
150 x 75	14	150	75	5	7	8	17.85
150 x 100	20.7	148	100	6	9	8	26.35
150 x 150	31.1	150	150	7	10	8	39.65
200 x 100	17.8	198	99	4.5	7	8	22.69
200 x 100	20.9	200	100	5.5	8	8	26.67
200 x 150	29.9	194	150	6	9	8	38.11
200 x 200	49.9	200	200	8	12	13	63.53
250 x 125	25.1	248	124	5	8	8	31.99
250 x 125	29	250	125	6	9	8	36.97
250 x 175	43.6	244	175	7	11	13	55.49
250 x 250	71.8	250	250	9	14	13	91.43
300 x 150	32	298	149	5.5	8	13	40.8
300 x 150	36.7	300	150	6.5	9	13	46.78
300 x 200	55.8	294	200	8	12	13	71.05
300 x 300	93	300	300	10	15	13	118.5
350 x 175	41.2	346	174	6	9	13	52.45
350 x 175	49.4	350	175	7	11	13	62.91
350 x 250	78.1	340	250	9	14	13	99.53
350 x 350	135	350	350	12	19	13	171.9
400 x 200	56.1	396	199	7	11	13	71.41
400 x 200	65.4	400	200	8	13	13	83.37
400 x 300	105	390	300	10	16	13	133.3
400 x 400	172	400	400	13	21	22	218.7
	232	414	405	18	28	22	295.4
	283	428	407	20	35	22	360.7
	415	458	417	30	50	22	528.6
	605	498	432	45	70	22	770.1
450 x 200	65.1	446	199	8	12	13	82.97
450 x 200	74.9	450	200	9	14	13	95.43
