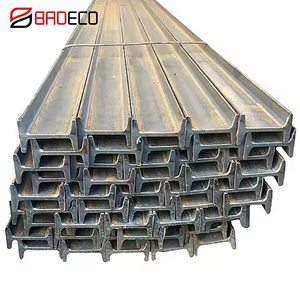

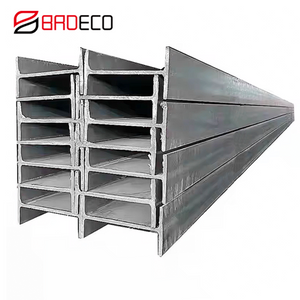

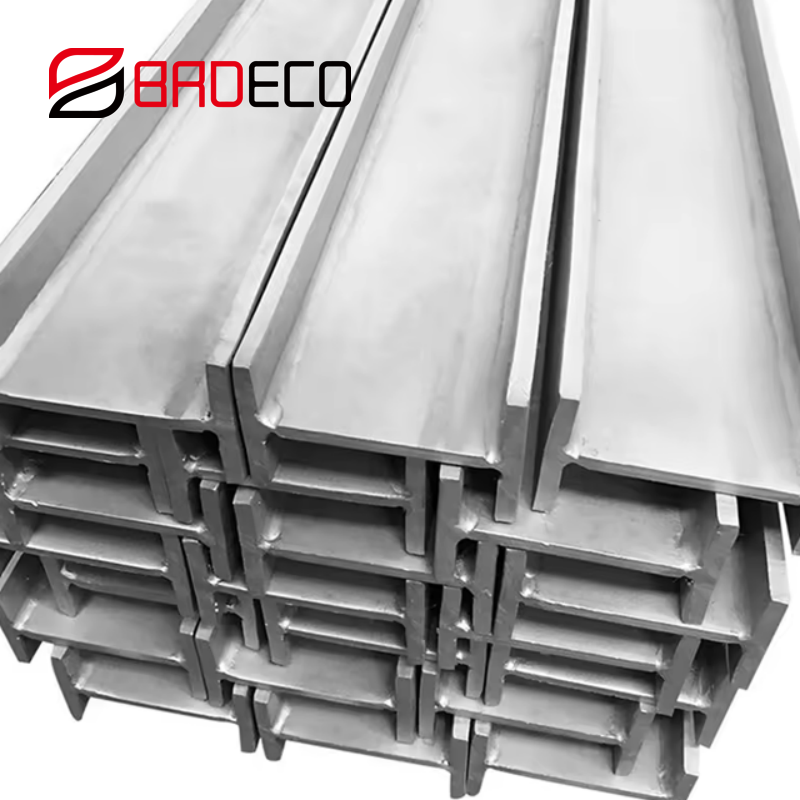

H- Beam (BS 4:2005 EN10034:1997 EN10163-3：2004)

The H- beam features two extended side flanges and a vertical flange, shaped like the letter "H". Its web depth and width allow it to withstand greater loads, making it a superior choice for longer-distance floor and roof load support. There are 2 standard available: HD and HP.

Availability:



Inquire

Product Description
Product Dimension Table (HD)
Product Dimension Table (HP)

Specifications	BS4:2005 EN10034:1997 EN10163-3：2004
Length(mm)	6000 - 12000 Length can be customized as request
Manufacturing Process	Hot Rolled
Shape	H channel
Application	Residential Buildings, Infrastructure Projects, Industrial Structures, Building Construction

H- Beam Steel H- Beam H Shaped Beam

Related Products

H- Beam (JIS G3192:1994 JIS G3136:2008)

H- Beam (BS4:2005 EN10034:1997 EN10163-3:2004)

Division (depth x width)	Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
	Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
	W	H	B	t 1	t 2	r	A
HD260	68.2	250	260	7.5	12.5	24	86.82
	92.9	260	260	10	17.5	24	118.4
	114	268	262	12.5	21.5	24	145.7
	142	278	265	15.5	26.5	24	180.3
	172	290	268	18	32.5	24	219.6
HD320	97.7	310	300	9	15.5	27	124.4
	127	320	300	11.5	20.5	27	161.3
	158	330	303	14.5	25.5	27	201.2
	198	343	306	18	32	27	252.3
	245	359	309	21	40	27	312
	300	375	313	27	48	27	382.1
HD360	134	356	369	11.2	18	15	170.6
	148	360	370	12.3	19.8	15	187.9
	162	364	371	13.3	21.8	15	206.3
	179	368	373	15	23.9	15	228.3
	196	372	374	16.4	26.2	15	250.3
HD400	187	368	391	15	24	15	237.6
	216	375	394	17.3	27.7	15	275.5
	237	380	395	18.9	30.2	15	300.9
	262	387	398	21.1	33.3	15	334.6
	287	393	399	22.6	36.6	15	366.3
	314	399	401	24.9	39.6	15	399.2
	347	407	404	27.2	43.7	15	442
	382	416	406	29.8	48	15	487.1
	421	425	409	32.8	52.6	15	537.1
	463	435	412	35.8	57.4	15	589.5
	509	446	416	39.1	62.7	15	649
	551	455	418	42	67.6	15	701.4
	592	465	421	45	72.3	15	754.9
	634	474	424	47.6	77.1	15	808
	677	483	428	51.2	81.5	15	863.4
	744	498	432	55.6	88.9	15	948.1
	818	514	437	60.5	97	15	1043
	900	531	442	65.9	106	15	1149
	990	550	448	71.9	115	15	1262
	1086	569	454	78	125	15	1386

Division (depth x width)	Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
	Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
	W	H	B	t 1	t 2	r	A
HD260	68.2	250	260	7.5	12.5	24	86.82
	92.9	260	260	10	17.5	24	118.4
	114	268	262	12.5	21.5	24	145.7
	142	278	265	15.5	26.5	24	180.3
	172	290	268	18	32.5	24	219.6
HD320	97.7	310	300	9	15.5	27	124.4
	127	320	300	11.5	20.5	27	161.3
	158	330	303	14.5	25.5	27	201.2
	198	343	306	18	32	27	252.3
	245	359	309	21	40	27	312
	300	375	313	27	48	27	382.1
HD360	134	356	369	11.2	18	15	170.6
	148	360	370	12.3	19.8	15	187.9
	162	364	371	13.3	21.8	15	206.3
	179	368	373	15	23.9	15	228.3
	196	372	374	16.4	26.2	15	250.3
HD400	187	368	391	15	24	15	237.6
	216	375	394	17.3	27.7	15	275.5
	237	380	395	18.9	30.2	15	300.9
	262	387	398	21.1	33.3	15	334.6
	287	393	399	22.6	36.6	15	366.3
	314	399	401	24.9	39.6	15	399.2
	347	407	404	27.2	43.7	15	442
	382	416	406	29.8	48	15	487.1
	421	425	409	32.8	52.6	15	537.1
	463	435	412	35.8	57.4	15	589.5
	509	446	416	39.1	62.7	15	649
	551	455	418	42	67.6	15	701.4
	592	465	421	45	72.3	15	754.9
	634	474	424	47.6	77.1	15	808
	677	483	428	51.2	81.5	15	863.4
	744	498	432	55.6	88.9	15	948.1
	818	514	437	60.5	97	15	1043
	900	531	442	65.9	106	15	1149
	990	550	448	71.9	115	15	1262
	1086	569	454	78	125	15	1386

Division (depth x width)	Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
	Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
	W	H	B	t 1	t 2	r	A
HP200	53.5	204	207	11.3	11.3	10	68.14
HP220	57.2	210	224.5	11	11	18	72.85
HP260	75	249	265	12	12	24	95.54
HP260	87.3	253	267	14	14	24	111.2
HP305	78.4	299.3	306.4	11	11	15.2	99.89
	88	301.7	307.8	12.4	12.3	15.2	112.1
	95	303.7	308.7	13.3	13.3	15.2	121
	110	307.9	310.7	15.3	15.4	15.2	140.1
	126	312.3	312.9	17.5	17.6	15.2	160.6
	149	318.5	316	20.6	20.7	15.2	189.9
	180	326.7	319.7	24.8	24.8	15.2	229.3
	186	328.3	320.9	25.5	25.6	15.2	236.9
	223	337.9	325.7	30.3	30.4	15.2	284
HP320	88.5	303	304	12	12	27	112.7
	103	307	306	14	14	27	131
	117	311	308	16	16	27	149.5
	147	319	312	20	20	27	186.9
	184	329	317	25	25	27	234.5
HP360	84.3	340	367	10	10	15.2	107.4
	109	346.4	371	12.8	12.9	15.2	138.7
	133	352	373.8	15.6	15.7	15.2	169.4
	152	356.4	376	17.8	17.9	15.2	193.7
	174	361.4	378.5	20.3	20.4	15.2	221.5
	180	362.9	378.8	21.1	21.1	15.2	229.5
HP400	122	348	390	14	14	15	156
	140	352	392	16	16	15	179
	158	356	394	18	18	15	201
	176	360	396	20	20	15	224
	194	364	398	22	22	15	248
	213	368	400	24	24	15	271
	231	372	402	26	26	15	294

Division (depth x width)	Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
	Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
	W	H	B	t 1	t 2	r	A
HP200	53.5	204	207	11.3	11.3	10	68.14
HP220	57.2	210	224.5	11	11	18	72.85
HP260	75	249	265	12	12	24	95.54
HP260	87.3	253	267	14	14	24	111.2
HP305	78.4	299.3	306.4	11	11	15.2	99.89
	88	301.7	307.8	12.4	12.3	15.2	112.1
	95	303.7	308.7	13.3	13.3	15.2	121
	110	307.9	310.7	15.3	15.4	15.2	140.1
	126	312.3	312.9	17.5	17.6	15.2	160.6
	149	318.5	316	20.6	20.7	15.2	189.9
	180	326.7	319.7	24.8	24.8	15.2	229.3
	186	328.3	320.9	25.5	25.6	15.2	236.9
	223	337.9	325.7	30.3	30.4	15.2	284
HP320	88.5	303	304	12	12	27	112.7
	103	307	306	14	14	27	131
	117	311	308	16	16	27	149.5
	147	319	312	20	20	27	186.9
	184	329	317	25	25	27	234.5
HP360	84.3	340	367	10	10	15.2	107.4
	109	346.4	371	12.8	12.9	15.2	138.7
	133	352	373.8	15.6	15.7	15.2	169.4
	152	356.4	376	17.8	17.9	15.2	193.7
	174	361.4	378.5	20.3	20.4	15.2	221.5
	180	362.9	378.8	21.1	21.1	15.2	229.5
HP400	122	348	390	14	14	15	156
	140	352	392	16	16	15	179
	158	356	394	18	18	15	201
	176	360	396	20	20	15	224
	194	364	398	22	22	15	248
	213	368	400	24	24	15	271
	231	372	402	26	26	15	294
