Manual Cleanroom Panel

Manual Cleanroom Panels or Handmade Cleanroom Panels are composite boards designed for high-purity environments. They are widely used in cleanroom projects with stringent indoor environmental requirements, such as electronics, pharmaceuticals, food processing, biotechnology, aerospace, precision instrument manufacturing, and research laboratories. If your project demands high structural strength, flexible core material combinations, and superior surface quality, handmade or manual cleanroom panels offer a more reliable solution.

Availability:



Inquire

PRODUCT DESCRIPTION

Manual Cleanroom Panels or Handmade Cleanroom Panels are manually assembled from multiple layers of materials and engineered to meet the strict demands of cleanroom construction in terms of strength, fire resistance, sound insulation, and sealing performance. The main structural components are as follows:

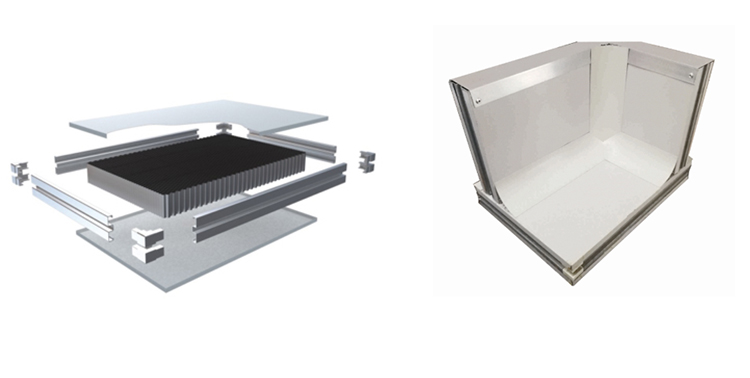

MANUAL CLEANROOM PANEL 3D DESGN MALAYSIA BRDMY

1. Surface Panels

Common materials: PPGI (Pre-Painted Galvanized Iron), stainless steel, galvanized steel, printed steel panels

Function: Provide excellent corrosion resistance, antibacterial properties, and aesthetic appeal suitable for cleanroom environments.

2. Core Material

Optional materials include:

Rockwool: Excellent fire resistance, thermal insulation, and sound absorption
Honeycomb: Lightweight with high compressive strength
Polyurethane (PU): Superior thermal insulation
Expanded Polystyrene (EPS): Cost-Effective Solution

Function: Acts as insulation, fireproofing, soundproofing, and structural support.

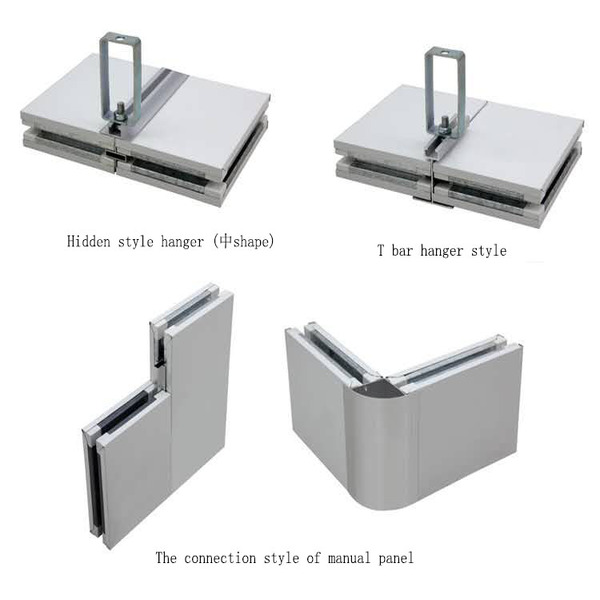

3. Frame and Edge Reinforcement

Material: Galvanized steel frame or aluminum alloy edge

Function: Strengthens the structural integrity of the panel edges, ensuring better durability and easier installation.

4. Adhesive Layer

Feature: High-strength, eco-friendly industrial adhesive

Function: Firmly bonds the surface panels and core material, ensuring no delamination or deformation during use.

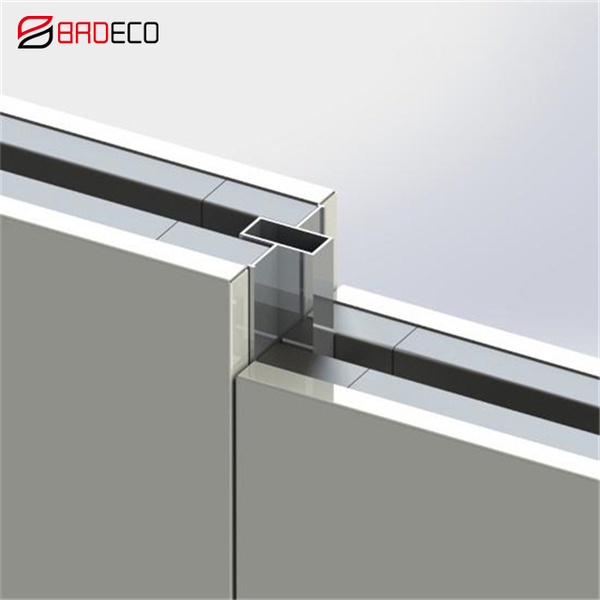

5. Internal Structural Design

Examples: "I"-shaped structure

Function: Enhances sealing performance, facilitates assembly and disassembly, improves cleanliness, and increases construction efficiency.

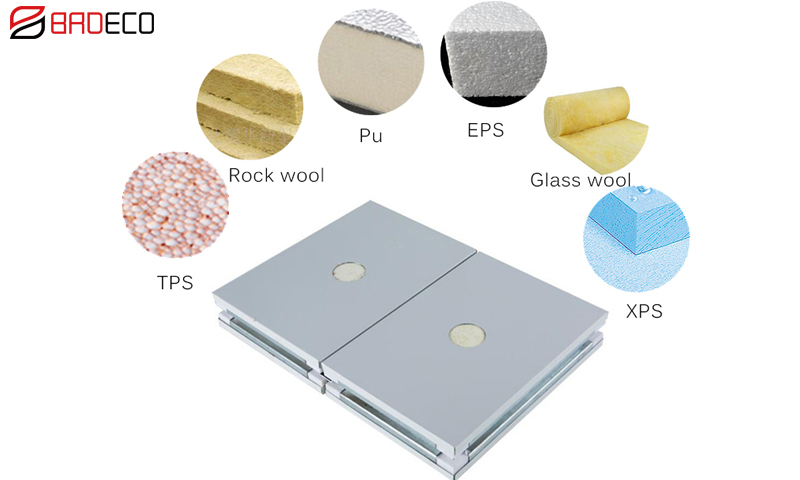

handmade CLEANROOM panel BRDMY

Product	Manual Cleanroom Panels or Handmade Cleanroom Panels
Standard Width	1180mm
Length	2meter - 12 meter
Thickness Available	50mm, 75mm, 100mm, 125mm, 150mm, 200mm
Outer Layer	PPGI (Pre-Painted Galvanized Iron) Stainless steel Galvanized steel Printed steel panels
Thickness of the Steel Sheet	0.4mm - 0.8mm
Core Material	Rockwool Honeycomb Polyurethane (PU) Expanded Polystyrene (EPS)
Core Material Density	35-50kg/m3
Thermal Conductivity	0.033W/m.K
Acoustic Insulation	30 [dB]
Colors	Any ral color
Advantages	High structural strength and long service life Compatible with various core and surface materials Customizable sizes and structural configurations Flexible installation to meet different cleanroom project needs
Certification	BS 8414 BS 476

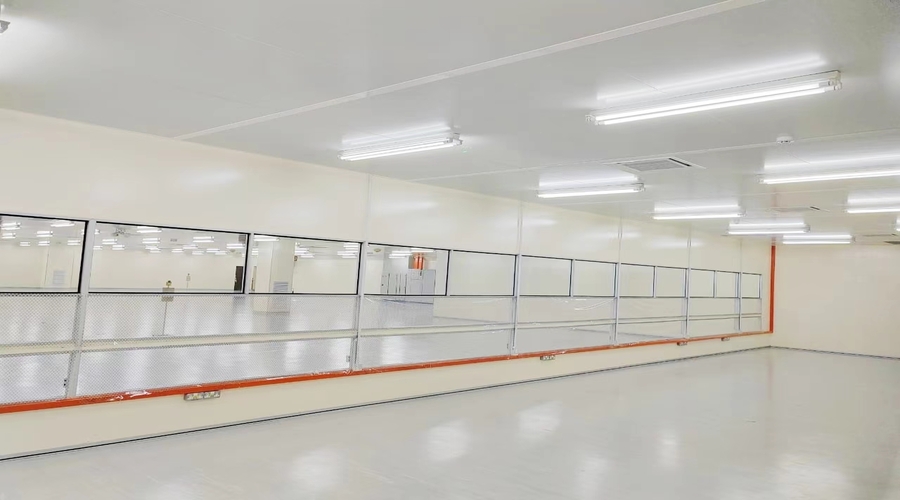

APPLICATION

Manual (handmade) cleanroom panels are specially designed for high-standard environments that require strict control of air purity, temperature, humidity, and contamination. Their high strength, customizable core materials, and superior sealing performance make them ideal for demanding cleanroom projects.

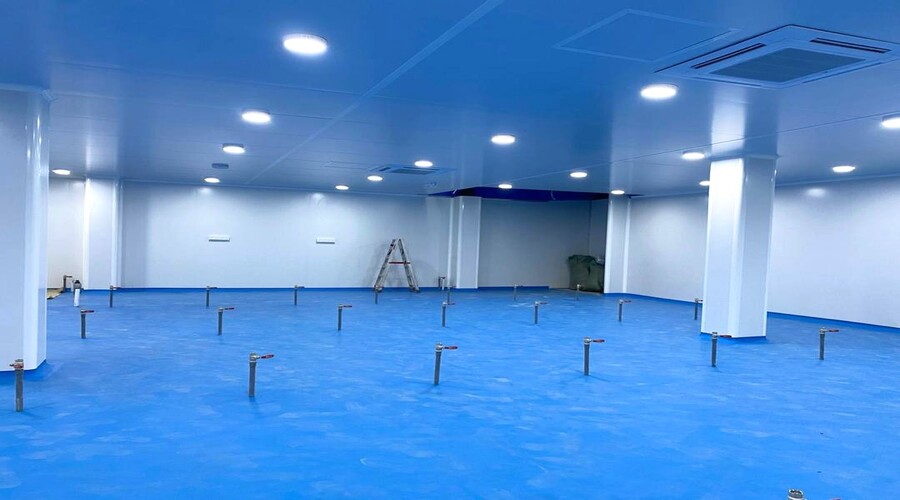

1. Cleanroom for Birds Nest Factory
