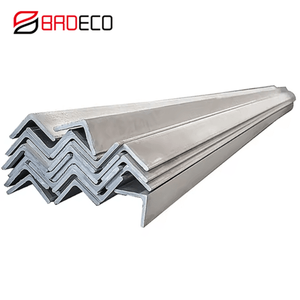

Equal Angle Bar (KS D 3502:2016 JIS G 3192:2008)

The Equal Angle Bar is a piece of steel bent at a 90-degree angle to form an "L" shape. The legs of the "L" shape may be of equal or unequal length. It finds extensive application across a wide range of industries and projects due to its versatile design and structural integrity. For example, Construction and Building, Manufacturing, Infrastructure Development, and Architectural Design.

Availability:



Inquire

Specifications	KS D 3502:2016 JIS G 3192:2008
Length(mm)	6000 - 12000 Length can be customized as request
Manufacturing Process	Hot Rolled
Shape	Piece of steel bent at a 90-degree angle to form an "L" shape
Application	Residential Buildings, Infrastructure Projects, Industrial Structures, Building Construction

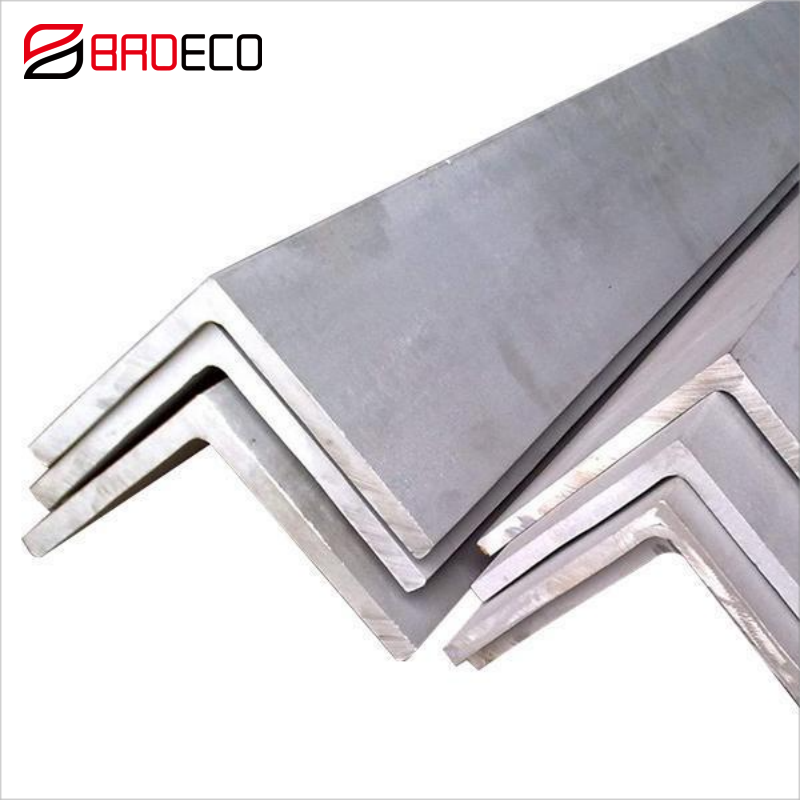

Corner L Shape Angle steel bar Equal Angle Bar

Related Products

Equal Angle Bar (EN10056-1:1999 EN10056-2:1993 EN10163-3:2004)

Designation (Depth x width)	Sectional Area (cm²)	Standard Sectional Dimension (mm)			Unit Weight (kg/m)
	Sectional Area (cm²)	Standard Sectional Dimension (mm)			Unit Weight (kg/m)
	A	t	r 1	r 2	W
25x25	1.427	3	4	2	1.12
30x30	1.727	3	4	2	1.36
40x40	2.336	3	4.5	2	1.83
40x40	3.755	5	4.5	3	2.95
45x45	3.492	4	6.5	3	2.74
45x45	4.302	5	6.5	3	3.38
50x50	3.892	4	6.5	3	3.06
50x50	4.802	5	6.5	3	3.77
50x50	5.644	6	6.5	4.5	4.43
60x60	4.692	4	6.5	3	3.68
60x60	5.802	5	6.5	3	4.55
65x65	6.367	5	8.5	3	5
65x65	7.527	6	8.5	4	5.91
65x65	9.761	8	8.5	6	7.66
70x70	8.127	6	8.5	4	6.38
75x75	8.727	6	8.5	4	6.85
75x75	12.29	9	8.5	6	9.96
75x75	16.56	12	8.5	6	13
80x80	9.327	6	8.5	4	7.32
90x90	10.55	6	10	5	8.28
90x90	12.22	7	10	5	9.59
90x90	17	10	10	7	13.3
90x90	21.71	13	10	7	17
100x100	13.62	7	10	5	10.7
100x100	19	10	10	7	14.9
100x100	24.31	13	10	7	19.1
120x120	18.76	8	12	5	14.7
130x130	22.74	9	12	6	17.9
130x130	29.76	12	12	8.5	23.4
130x130	36.75	15	12	8.5	28.8
150x150	34.77	12	14	7	27.3
150x150	42.74	15	14	10	33.6
150x150	53.38	19	14	10	41.9
175x175	40.52	12	15	11	31.8
175x175	50.21	15	15	11	39.4
200x200	57.75	15	17	12	45.3
200x200	76	20	17	12	59.7
200x200	93.75	25	17	12	73.6
250x250	119.4	25	24	12	93.7
259x250	162.6	25	24	18	128

Designation (Depth x width)	Sectional Area (cm²)	Standard Sectional Dimension (mm)			Unit Weight (kg/m)
	Sectional Area (cm²)	Standard Sectional Dimension (mm)			Unit Weight (kg/m)
	A	t	r 1	r 2	W
25x25	1.427	3	4	2	1.12
30x30	1.727	3	4	2	1.36
40x40	2.336	3	4.5	2	1.83
40x40	3.755	5	4.5	3	2.95
45x45	3.492	4	6.5	3	2.74
45x45	4.302	5	6.5	3	3.38
50x50	3.892	4	6.5	3	3.06
50x50	4.802	5	6.5	3	3.77
50x50	5.644	6	6.5	4.5	4.43
60x60	4.692	4	6.5	3	3.68
60x60	5.802	5	6.5	3	4.55
65x65	6.367	5	8.5	3	5
65x65	7.527	6	8.5	4	5.91
65x65	9.761	8	8.5	6	7.66
70x70	8.127	6	8.5	4	6.38
75x75	8.727	6	8.5	4	6.85
75x75	12.29	9	8.5	6	9.96
75x75	16.56	12	8.5	6	13
80x80	9.327	6	8.5	4	7.32
90x90	10.55	6	10	5	8.28
90x90	12.22	7	10	5	9.59
90x90	17	10	10	7	13.3
90x90	21.71	13	10	7	17
100x100	13.62	7	10	5	10.7
100x100	19	10	10	7	14.9
100x100	24.31	13	10	7	19.1
120x120	18.76	8	12	5	14.7
130x130	22.74	9	12	6	17.9
130x130	29.76	12	12	8.5	23.4
130x130	36.75	15	12	8.5	28.8
150x150	34.77	12	14	7	27.3
150x150	42.74	15	14	10	33.6
150x150	53.38	19	14	10	41.9
175x175	40.52	12	15	11	31.8
175x175	50.21	15	15	11	39.4
200x200	57.75	15	17	12	45.3
200x200	76	20	17	12	59.7
200x200	93.75	25	17	12	73.6
250x250	119.4	25	24	12	93.7
259x250	162.6	25	24	18	128
