Manual Panel

Clean room is a special designed room to exclude the particles in the air, bacteria and other harmful air pollutants, and the indoor temperature, cleanliness, interior pressure, air velocity and air distribution, noise, vibration, and lighting, static control within the scope of a certain demand.

Product Description

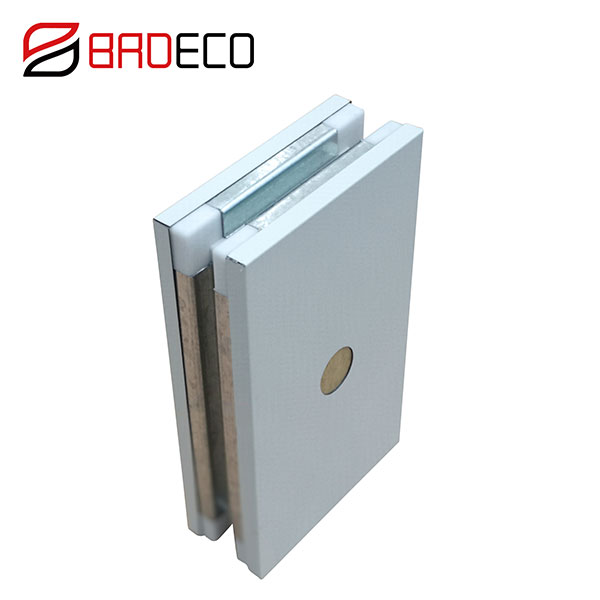

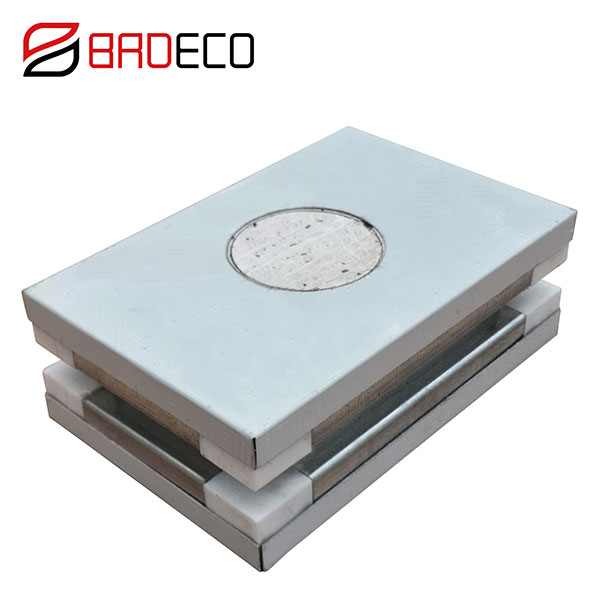

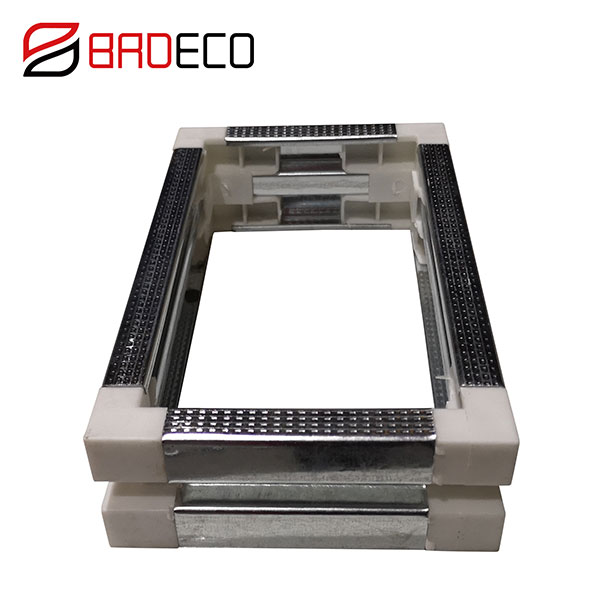

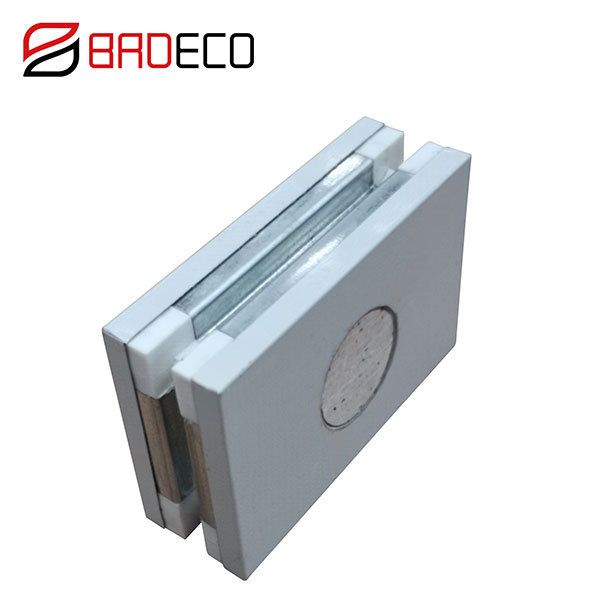

Clean Room Panels are composed of 3 layers, the external and internal is galvanized sheet or Aluminum sheets, and core materials used high density polyurethane foam. Thanks to their good thermal insulation properties, it can be applied in projects that required very high heat insulation performanece.


Clean-Room-Panel-BRD-(9)

COLOR OPTIONS

PERMAGARD® WHITE

SHALE GREY®

PAPERBARK®

SURFMIST®

CLASSIC CREAM®

CHARACTERISTICS


 TPS insulation core

 Good heat insultion performence

 Vertical or horizontal installation

 Standard lengths are from 2 m to 10 m (max. 12 m)

 Thickness of insulation core 50, 75, 100, 125, 150, and 200 mm



Clean room is a special designed room to exclude the particles in the air, bacteria and other harmful air pollutants, and the indoor temperature, cleanliness, interior pressure, air velocity and air distribution, noise, vibration, and lighting, static control within the scope of a certain demand. That is no matter how the outside air conditions change, its indoor all can maintain the original set requirements of cleanliness, temperature and humidity and pressure performance characteristic.


SPECIFICATIONS

Feature:

▲Energy saving

▲Thermal insulation

▲Design flexibility

▲Aesthetically pleasing

▲Meets health industry regulations


Panel Thickness

 50mm-200mm

Standard Facings

Steel  sheet coated with polyester paint, 25µm

Hign  Zinc sheet with Zn 50 – Zn 180g

Stainless steel

Core Material Density

35-50kg/m3

Thermal Conductivity

 0.033W/m.K

Acoustic Insulation

30 [dB]

Standard Length

2m-12m

Effective width

500-1150mm

Fire resistance

Non-flammable

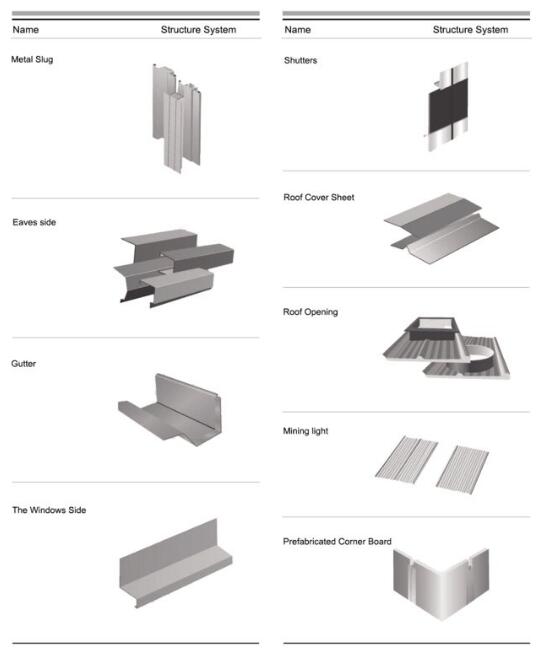

SYSTEM ACCESSORIES

QQ截图20200426164709

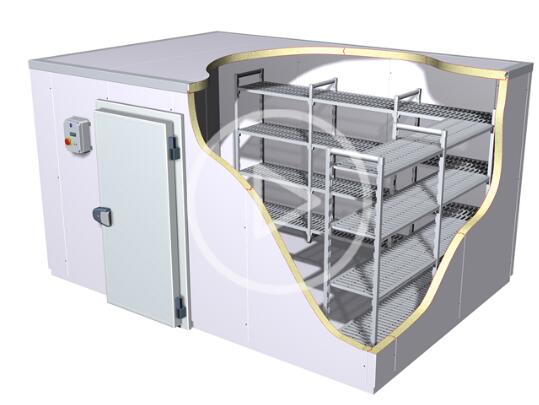

INSTALLATION VIDEO

QQ截图20200426164717

1, First of all, it must carry on the construction preparation before installation, include personnel, materials, etc. All will be well prepared.

2, Before the installation of clean room panel, it should check whether the verticality and levelness of metope purlin installation requirements, wall frame column vertical degree meets the requirement.

3, It should first mounting plate bottom water retaining plate and the bottom of the window to block water board, water retaining plate and roof frame beam connection with self tapping screw fixation.

4, Clean room panel links with ground.

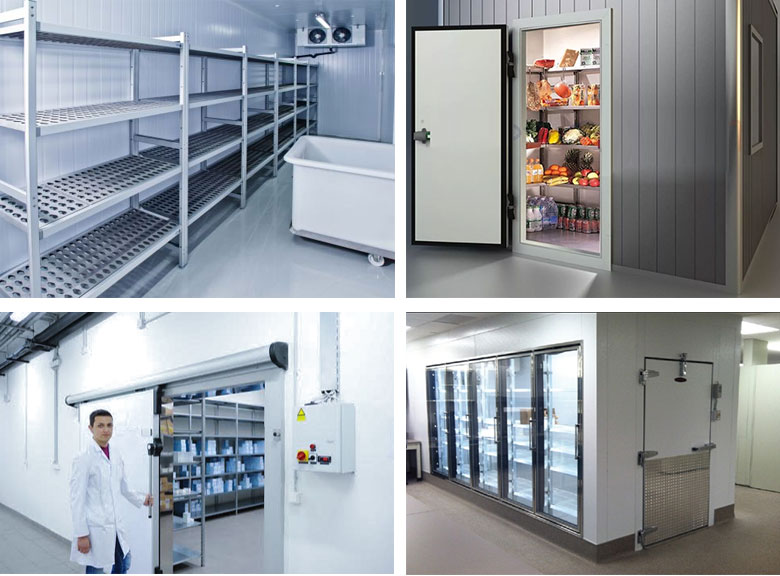

APPLICATION

CLEANROOM PANEL are applied as external walls and internal division walls, installed vertically or horizontally on single- or multi-spanstructure.


★CLEAN Rooms

★Freezers Rooms

★Dual Temperature Rooms

★Laboratories cold rooms

★Proven rooms

★CLEAN ROOM Facilities

★Warm rooms
