Cold Room System

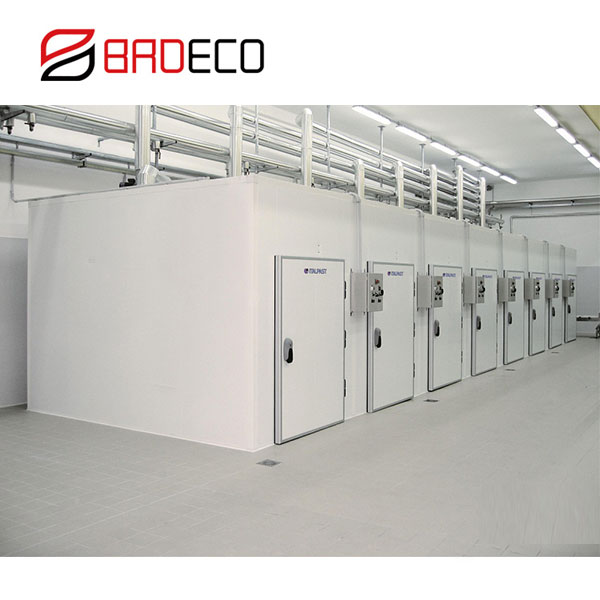

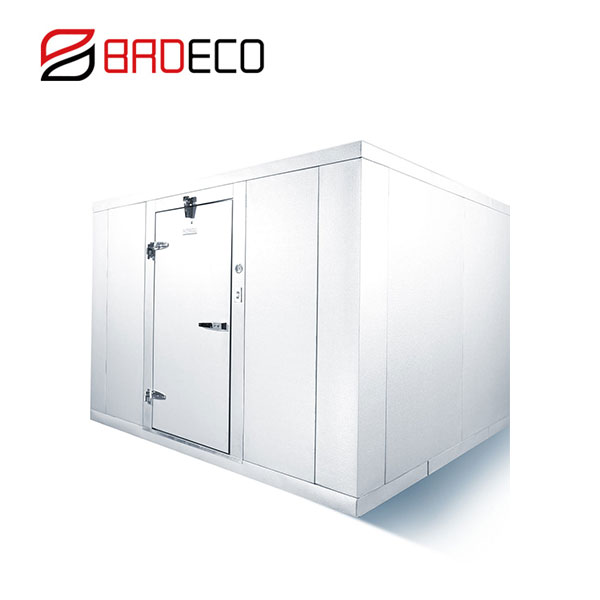

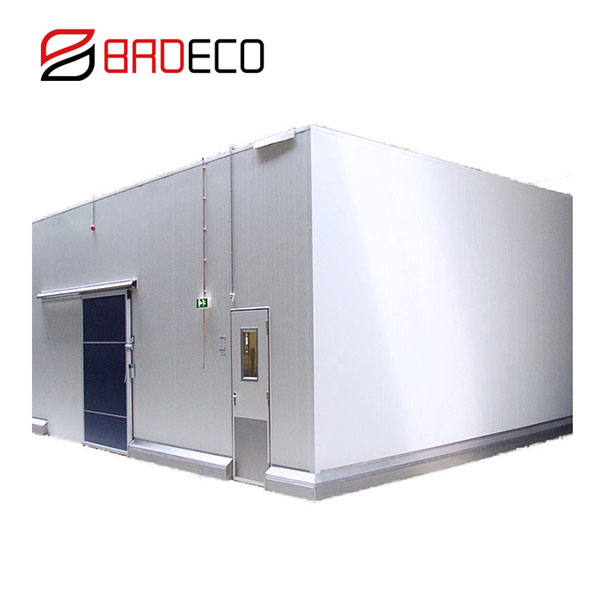

BRD cold rooms system provide strong cooling for a variety of cold room sizes that cover applications ranging from medical lab storage rooms, food processing centers, walk-in coolers to drive-in distribution centers and others, which offer a wide range of solutions to preserve freshness, ensure safety and enhance the appearance of food and beverage retail. The standard width of panel is 1 meter, while the length and thickness are customizable.

Availability:



Inquire

Colors

The popular color as bellow for basic choice, or any other required on RAL Color

SILVER

WHITE GREY

PURE WHITE

LIGHT IVORY

TRAFFIC WHITE

SLIVER GREY

CHARACTERISTICS

PU Cold Storage

coldroom-panel-BRD

PU insulation core

Good heat insultion performence

Vertical or horizontal installation

Standard lengths are from 2 m to 10 m (max. 12 m)

Thickness of insulation core 50, 75, 100, 125, 150, and 200 mm

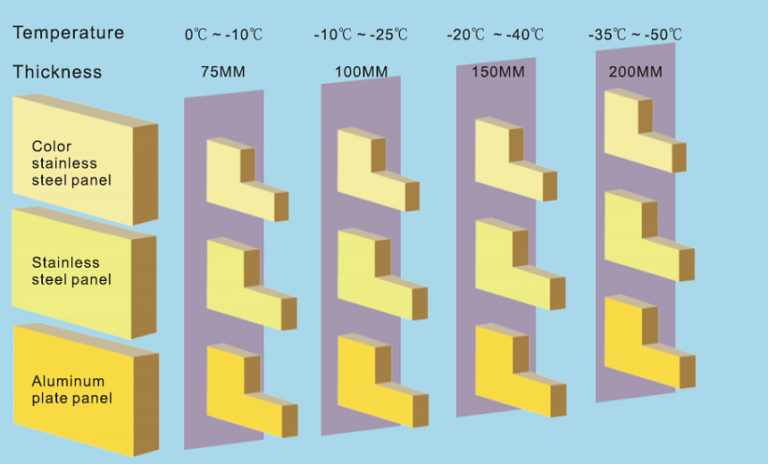

panel-thickness-768x464

Product Description

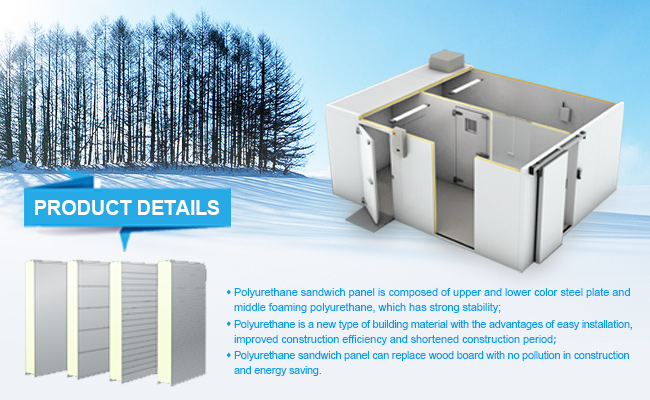

cold-store-panel-BRD

Cold Storage Panels are composed of 3 layers, the external and internal is galvanized sheet or Aluminum sheets, and core materials used high density polyurethane foam. Thanks to their good thermal insulation properties, it can be applied in projects that required very high heat insulation performanece, like cold storage, cool room ,freezer, refrigerating workshop construction.

SPECIFICATIONS

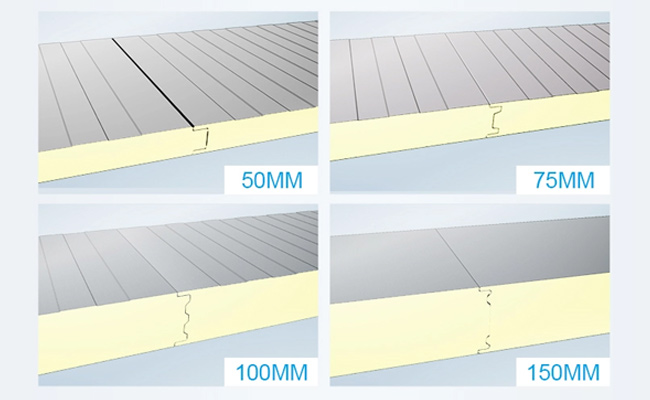

cold-room-panel-BRD

Feature:

▲Energy saving

▲Thermal insulation

▲Design flexibility

▲Aesthetically pleasing

▲Meets health industry regulations

Panel Thickness	50mm-200mm
Standard Facings	Steel sheet coated with polyester paint, 25µm Hign Zinc sheet with Zn 50 – Zn 180g Stainless steel
Core Material Density	40 [kg/m³] ±2kg/m³
Thermal Conductivity	0.022 [W/mK]
Acoustic Insulation	30 [dB]
Standard Length	2m-12m
Effective width	500-1150mm
Fire resistance	Non-flammable

Application

cold-storage-panel-BRD

BRD cold room systems are designed for usage within temperature controlled and hygiene safe environments such as, food processing, deep freeze, cold,chill store and cold storage for meat, food and other industries.

★Cool Rooms

★Freezers Rooms

★Dual Temperature Rooms

★Laboratories cold rooms

★Proven rooms

★Cold Storage Facilities

★Warm rooms

INSTALLATION VIDEO

1, First of all, it must carry on the construction preparation before installation, include personnel, materials, etc. All will be well prepared.

2, Before the installation of cold room panel, it should check whether the verticality and levelness of metope purlin installation requirements, wall frame column vertical degree meets the requirement.

3, It should first mounting plate bottom water retaining plate and the bottom of the window to block water board, water retaining plate and roof frame beam connection with self tapping screw fixation.

4, Cold storage links with ground.
